Description
UB600 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.
Be the first to review “Walk Through Metal Detector: UB600”
UB600 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.

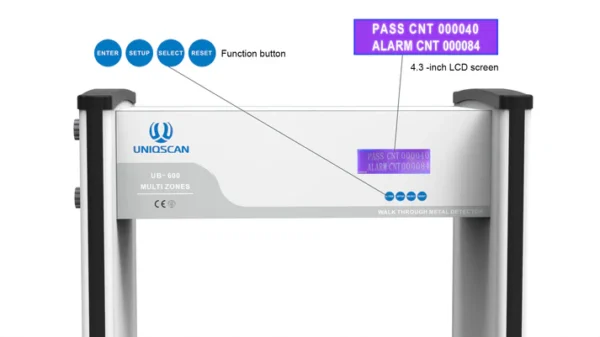

The UM-600’s Access Control Panel is designed for use by authorized personnel with specific, multi-level security with password protection, only the authorized person can operate； Sound & LED alarm: Both Side LED indicators, easily show where the metal is, Automatically count passengers, and alarm times.
- Sound & LED alarm: Two Sides LED indicator easily shows where the metal is； 5-digit counter: Automatically count passengers and alarm times
- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
- Sensitivity Test piece: One yuan Coin, omnidirectional detection
- Password protection, only the authorized person can operate； Waterproof can be used outdoor
- Using waterproof PVC material
- PVC door panels, LED on the top unit
- Sensitivity adjustable: Each zone has 2000 sensitivity level

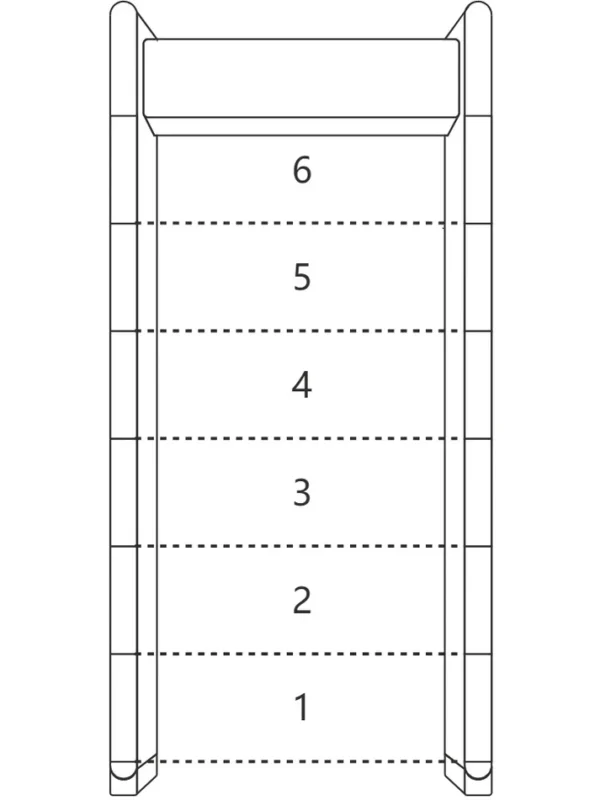

- 6 detecting zones, Simultaneous alarm from multi-zones
- Easy assembly: portable design, only 4 screws, Simply follow instructions.
- Harmless to the human body: is harmless with heart pacemakers, pregnant women, magnetic floppy, recording tapes, etc.
- Program Self-diagnostic when power on, no need for initial or periodic calibration；
- Modularization design is easy for maintenance and replacement.
TRUE QUALITY
SAFE & HARMLESS
CERTIFICATIONS
SCOPE OF APPLICATION
It is suitable for the quick security check, where intelligent management of channels is required, such as subway stations, customs ports, airports, railway stations, hospitals, schools, communities, supermarkets, clubs, enterprises, and institutions.
| FUNCTION PARAMETER | |

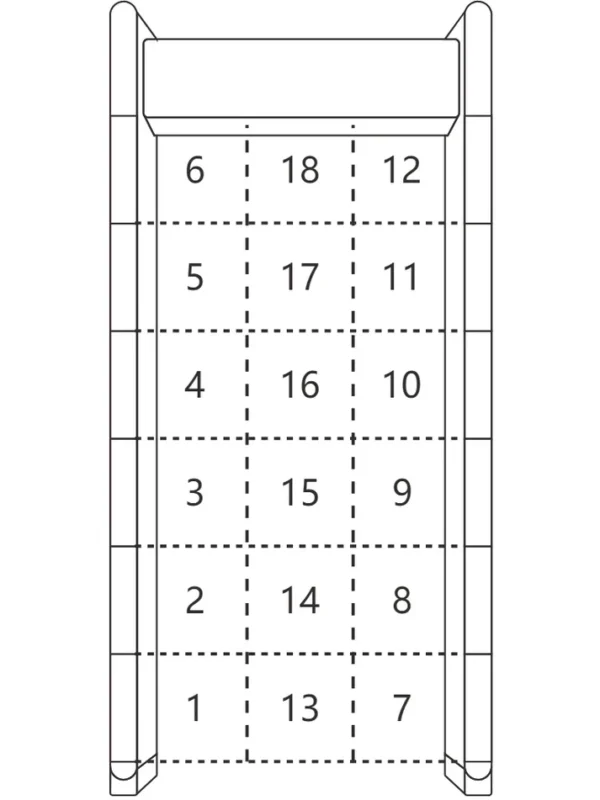

| Detection Zones | 18 zone |
| Multi-Unit Synchronization | Manual |
| Visual Displays | Digital tube display |
| Access Control | Button |
| Control Outputs | Alarm area indicator and buzzer |
| Sensitivity | Each zone 0-99, 100 levels adjustable |
| Frequency | 5.9K-8.6KHz continuously adjustable |
| Smallest detectable unit | One yuan coin |
| Infrared beam mode | One-way, two-way |
| Remote Control | 15m |
| Infrared passing speed | 60/min |
| Environmental Signal Interference Detection | Real-time display of signal strength |
| ELECTRICAL PARAMETERS | |
| Power | AC110V（220V）/60HZ（50HZ） |
| Working current | 1A |
| Power consumption | <12W |
| USE ENVIRONMENT | |
| Protection class | IP53 |
| Use environment | Indoor only |
| Operating Temperatures | -20℃～45℃ |
| Working humidity | 0-0.95,no condensation |
| MATERIAL | |
| Construction | MDF, gray |
| Cable connector | DB25 |
| Installation method | Vertical installation |
