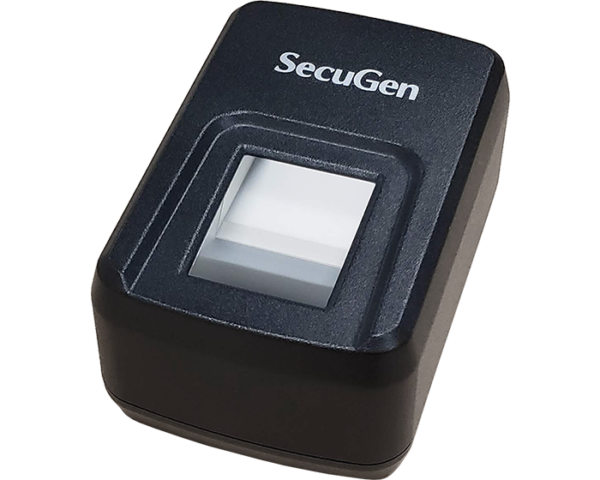

SecuGen Hamster Pro Trio
The Hamster Pro Trio combines SecuGen’s U20-A fingerprint sensor with both a contact smart card reader and contactless smart card reader. Featuring a compact, ergonomic design, the Hamster Pro Trio is built with the industry’s most rugged and advanced optical sensor using patented and patent-pending fingerprint technology. The high image quality fingerprint reader is FBI Certified as meeting FIPS 201 (PIV) and Mobile ID FAP 20 requirements.
- Description
- Additional information
- Reviews (0)
- Technical Specifications
Description
For Developers
SecuGen provides free SDKs that support the fingerprint reader in Hamster Pro Trio for Windows, Linux, and Android applications. All SecuGen SDKs include the tools that enable fingerprint registration, matching, and related biometric functions.
Applications
Suitable for FIPS 201 (PIV) applications but applicable to many other biometric card applications, the Hamster Pro Trio gives extra flexibility by being capable of accepting a wider range of smart cards, from contact type to contactess. This versatility makes the Hamster Pro Trio ideal for a broad range of smart card applications, such as national ID programs, physical access control, personal identity verification, and remote work, where multi-factor authentication is needed for higher security without sacrificing convenience.
Main Features
- FBI Certified fingerprint reader (PIV, FIPS 201, Mobile ID FAP 20 Compliant) that meets FBI Image Quality standards
- Single slot contact smart card reader that supports ISO/IEC 7816 ID-1 cards
- Contactless smart card reader that supports ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE series, FeliCa, Calypso, and NFC Forum Type Tags
- Support for PIV (Personal Identity Verification) card, CAC (Common Access Card), and TWIC (Transportation Workers Identification Credential)
- Compliance with CCID standard and PC/SC specifications
- Compact and ergonomic
- USB bus-powered, no additional power supply required
Fingerprint Reader Features
- Fake Finger Rejection – advanced technology that rejects spoofed fingerprints
- Rugged, high-performance, maintenance-free optical sensor resistant to scratches, impact, vibration and electrostatic shock
- Fast recognition and high quality imaging of difficult fingerprints (dry, wet, scarred) in challenging environments
- Fast and accurate verification
- Readily accessible for any finger
- Auto-On™ – automatic finger detection technology (when used with apps built with SecuGen SDKs)
- Smart Capture™ – self-adjusting scanning technology (when used with apps built with SecuGen SDKs)
- Device Recognition™ – device authentication technology (when used with apps built with SecuGen SDKs)
- Fingerprint template encryption (when using SecuGen Proprietary template format)
- Latent print rejection (does not accept prior fingerprints left behind on sensor)
- Integrated finger guide
Benefits of Using SecuGen Fingerprint Readers
Backed by the industry’s best warranty, years of field use and proven reliability under extreme conditions, SecuGen fingerprint readers provide consistent performance and security for a growing number of applications in physical and information security, point-of-sale, time & attendance, and access control systems.
When used for biometric authentication as part of an overall security program, SecuGen fingerprint readers can help reduce the hassles of password overload, decrease the risks of security breaches, improve accountability and add true non-repudiation, all while making it more convenient and intuitive for almost any user.
Look to SecuGen for advanced, fingerprint biometric technologies that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen.
Additional information
Industries | Energy & Utilities, Healthcare, Manufacturing, Public Sector, Retail |
---|
Be the first to review “SecuGen Hamster Pro Trio”
General | |
Name (Model) | Hamster Pro Trio (XU20ASCL™) |
Dimensions / Weight | 80.0 x 100.0 x 45.5 mm / 185 g |
Interface | Hi-Speed USB 2.0 (fingerprint reader), USB 2.0 Full-Speed (card reader) |
Operating Temperature | 0° ~ 55°C |
Operating Humidity | 90% or less RH, noncondensing |
Supply Voltage / Max. Current | 5 V DC / 300 mA |
Warranty | One year limited |
Certifications | FCC, CE, RoHS, Microsoft WHQL, FBI PIV, FIPS 201 |
Supported Operating Systems | Windows 11 / 10 / 8.1 / 8 / 7 Windows Server 2016 / 2012 / 2008 R2 Linux, Android 3.1 and above |
Fingerprint Reader | |
Sensor (Type) | U20-A (contact) |
Fingerprint Image Resolution / Size | 500 DPI / 300 x 400 pixels |
Fingerprint Platen Size (Effective Sensing Area) | 18.2 mm x 23.1 mm (15.24 mm x 20.32 mm) |
Fingerprint Capture Speed | 0.2 ~ 0.5 second with Smart Capture™ |
Supported Standards | FIPS 201 (PIV-071006), INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FBI Mobile ID FAP 20 |
Contact Smart Card Reader | |
Model | Identiv CLOUD 2100R (uTrust 2700 R) contact reader |
Standards | ISO/IEC 7816 ID-1, Class A/B/C support, EMV 2011 v4.3 Level 1 |
Protocol | T=0, T=1 |
Smart Card Interface | ID-1 8 pin sliding contact, Card Present switch, C4/C8 support |
Data Transfer Rate | Up to 600 kpbs (depends on card), TA1=97 |
Supported APIs | PC/SC, CT*, M-Card* (*through wrapper on top of PC/SC) |
Compliance / Certifications | EMV 2008 v4.2 Level 1, ISO/IEC 7816, USB 2.0, CCID, Microsoft WHQL, FIPS 201, FCC Class B, CE, UL94, UL 60950, VCCI, ICES, ANZ, HBCI, GSA APL, RoHS2, REACH, WEEE |
Card Reader Driver and Downloads | (same as uTrust 2700R): https://support.identiv.com/2700r |
Contactless Smart Card Reader | |
Model | AB Circle CIM315F-01 Compact Contactless Smart Card Reader |
Standards | ISO/IEC 18092, ISO/IEC 14443 Type A & B, ISO/IEC 15693 |
Protocol | T=CL (translated to T=1 for PC/SC compliance) |
Card Types | ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE series, FeliCa, Calypso, and NFC Forum Type Tags |
Operating Frequency | 13.56 MHz |
Reading Distance | Up to 50 mm (depending on tag type) |
Data Transfer Rate | Up to 848 kbps |
SAM Card Interface | ISO/IEC 7816, T=0, T=1 protocols |
Supported API | PC/SC |
Compliance / Certification | ISO/IEC 14443, ISO/IEC 18092, ISO/IEC 15693, ISO/IEC 7816 (SAM slot), USB 2.0 Full Speed, CCID, Microsoft WHQL |
