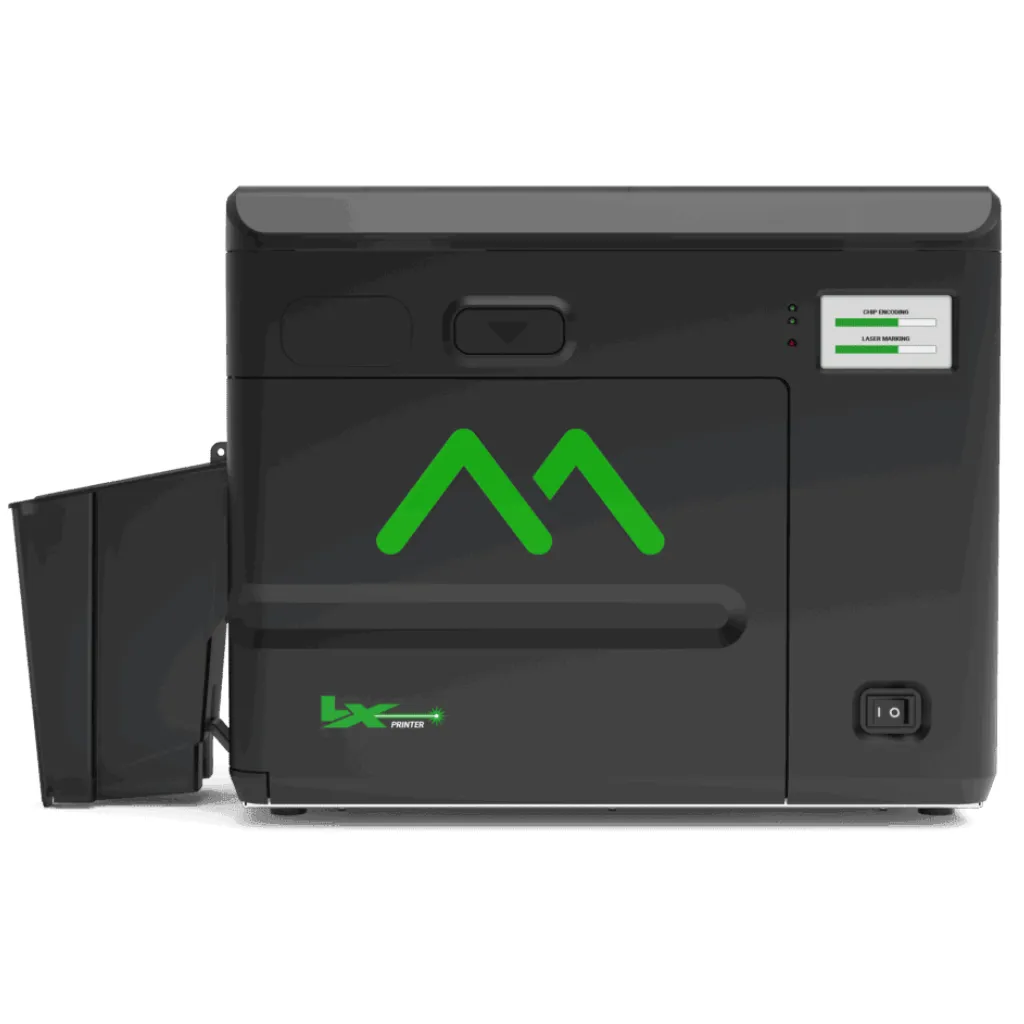

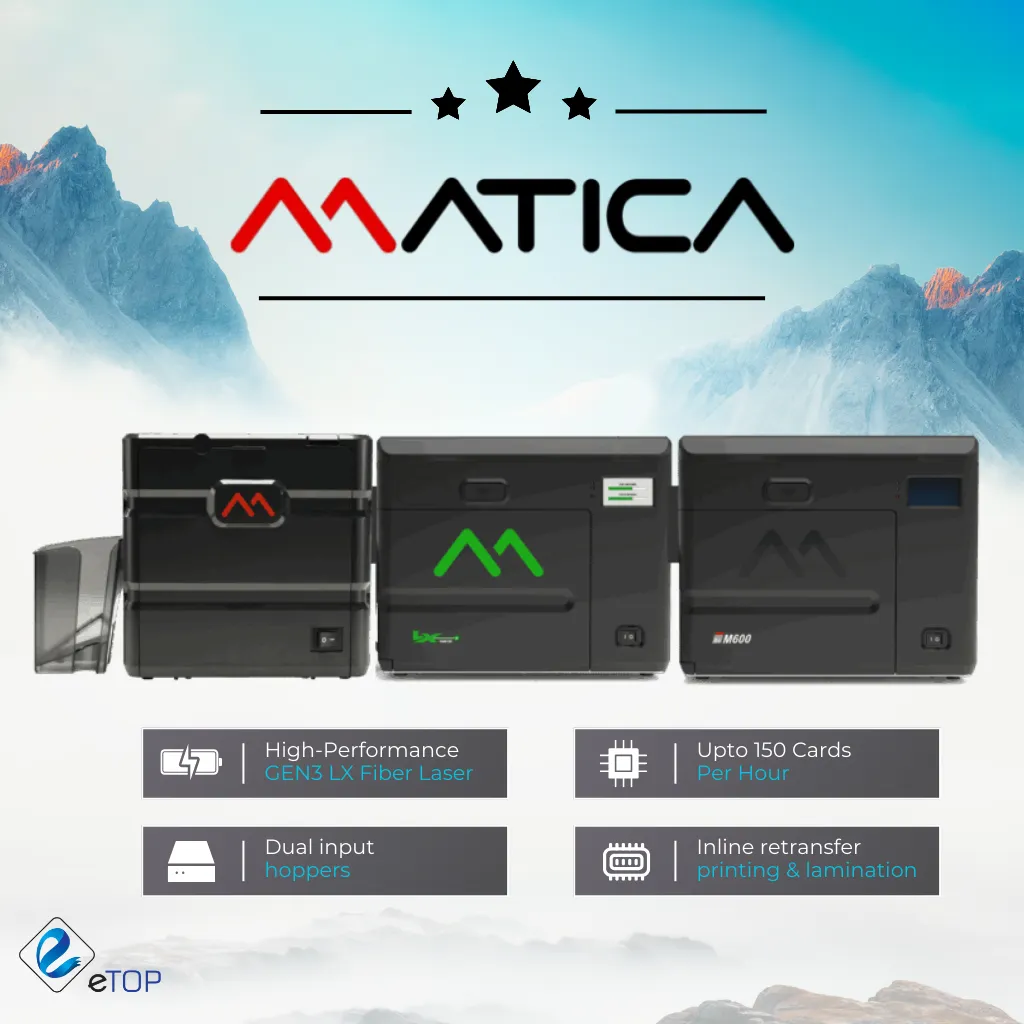

Matica LX PRINTER

The Matica LX PRINTER is a new launch from Matica a compact yet powerful fiber laser ID card printer designed for secure ID card personalization and issuance. It offers high-security engraving for polycarbonate cards in government, corporate, and distributed issuance applications by combining industrial-grade laser capability with a tiny desktop size.

• Industrial GEN3 fiber laser

• Up to 150 cards per hour

• Modular design with MSPI support

• Dual card hoppers & onboard PC

Request For Quote


OVERVIEW


SPECIFICATIONS

The Matica LX PRINTER is a desktop-friendly device that can print high-quality industrial laser engravings. It’s perfect for issuing secure IDs in a decentralized way. It uses the tried-and-true GEN3 LX fiber laser source from bigger Matica systems to get very precise results on polycarbonate and composite cards. This makes it excellent for government-issued IDs, driver’s licenses, and national ID cards.

When used with XID-series retransfer printers, its modular design supports Matica Secure Protected Image (MSPI®). This adds an extra layer of protection by laser-engraving extracted image data in perfect register. The LX PRINTER also works well with MC-L2 laminators and retransfer printing options, which makes cards last longer and makes it harder for people to make fake cards in end-to-end issuance operations.

You may load and issue two different types of cards on demand with dual input hoppers. The built-in Windows 11 IoT PC lets you control the system without needing a separate workstation, which is great for service desks, licensing centers, and government sites that are spread out.

• Laser Technology: MOPA GEN3 LX fiber laser for high-security engraving

• Laser Resolution: 1200 dpi for crisp, detailed marking

• Engraving Area: 56 × 88 mm over-the-edge (CR80 card size)

• Engraving Speed: Up to 150 cards per hour (dual-side batch mode)

• Engraving Modes: Single-side or dual-side operation

• Connectivity: Ethernet interface for secure network connection

• Vision System:

  • Automatic XY positioning

  • OCR reading

  • Barcode reading

• Printer Dimensions (H × W × D): 351 × 428 × 279 mm (13.8″ × 16.8″ × 11″)

• Weight: 19 kg / 42 lb

• Security Features: Support for security lock

• Power Supply: 100–240 V AC, 50–60 Hz, 600 W

• Operating Environment:

  • Temperature: 15°C – 40°C (59°F – 104°F)

  • Humidity: 30% – 70% (non-condensing)

• Storage Conditions:

  • Temperature: 5°C – 70°C (23°F – 158°F)

  • Humidity: 20% – 70% (non-condensing)

• Noise Level: Less than 48 dB(A)

• Certifications: RoHS, CE, WEEE, TÜV Laser Certification

• Warranty: 1 year standard, +1 year extension available on request

The Matica LX PRINTER is a desktop-friendly device that can print high-quality industrial laser engravings. It’s perfect for issuing secure IDs in a decentralized way. It uses the tried-and-true GEN3 LX fiber laser source from bigger Matica systems to get very precise results on polycarbonate and composite cards. This makes it excellent for government-issued IDs, driver’s licenses, and national ID cards.

When used with XID-series retransfer printers, its modular design supports Matica Secure Protected Image (MSPI®). This adds an extra layer of protection by laser-engraving extracted image data in perfect register. The LX PRINTER also works well with MC-L2 laminators and retransfer printing options, which makes cards last longer and makes it harder for people to make fake cards in end-to-end issuance operations.

You may load and issue two different types of cards on demand with dual input hoppers. The built-in Windows 11 IoT PC lets you control the system without needing a separate workstation, which is great for service desks, licensing centers, and government sites that are spread out.

• Laser Technology: MOPA GEN3 LX fiber laser for high-security engraving

• Laser Resolution: 1200 dpi for crisp, detailed marking

• Engraving Area: 56 × 88 mm over-the-edge (CR80 card size)

• Engraving Speed: Up to 150 cards per hour (dual-side batch mode)

• Engraving Modes: Single-side or dual-side operation

• Connectivity: Ethernet interface for secure network connection

• Vision System:

  • Automatic XY positioning

  • OCR reading

  • Barcode reading

• Printer Dimensions (H × W × D): 351 × 428 × 279 mm (13.8″ × 16.8″ × 11″)

• Weight: 19 kg / 42 lb

• Security Features: Support for security lock

• Power Supply: 100–240 V AC, 50–60 Hz, 600 W

• Operating Environment:

  • Temperature: 15°C – 40°C (59°F – 104°F)

  • Humidity: 30% – 70% (non-condensing)

• Storage Conditions:

  • Temperature: 5°C – 70°C (23°F – 158°F)

  • Humidity: 20% – 70% (non-condensing)

• Noise Level: Less than 48 dB(A)

• Certifications: RoHS, CE, WEEE, TÜV Laser Certification

• Warranty: 1 year standard, +1 year extension available on request

GET A FREE QUOTE

Small size, flexible design

The Matica LX PRINTER combines the precision of an industrial laser with a small desktop design to make issuing secure ID cards faster and easier. Its flexible 3-in-1 modular design lets it work with XID-M600 retransfer printers and MC-L2 laminators without any problems, allowing for dual-side lamination and inline retransfer printing. Cards are processed rapidly, and polycarbonate and composite cards are more durable and secure than regular cards.

Smart Design for Issuing a Lot of Cards

The LX PRINTER has two 2×200 card input hoppers, so it can handle a lot of different sorts of cards on demand. This makes it great for creating driver’s licenses, national IDs, or corporate access cards. The built-in Windows 11 IoT embedded PC makes things easier to use, letting businesses manage distributed issuance operations without needing an additional workstation. The LX PRINTER is a full solution for modern secure card programs since it is fast, flexible, and well-designed.

ETOP

Authorized Dealer

We are an authorized dealer and supplier of the complete range of Wacom signature pads. Our sales experts can help you choose the perfect model for your business needs. Contact us at +971 52 899 9169 or email: sales@etopme.ae for more information.

Related Product

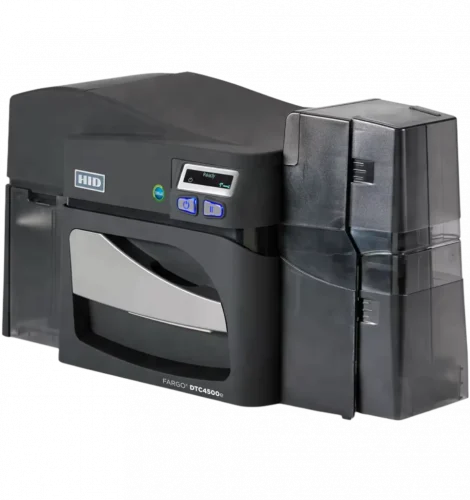

DTC4500e

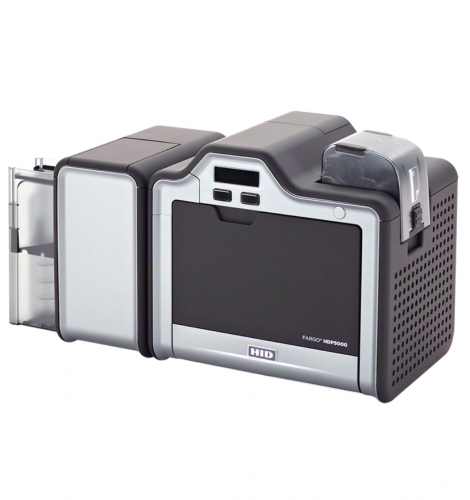

HDP5000

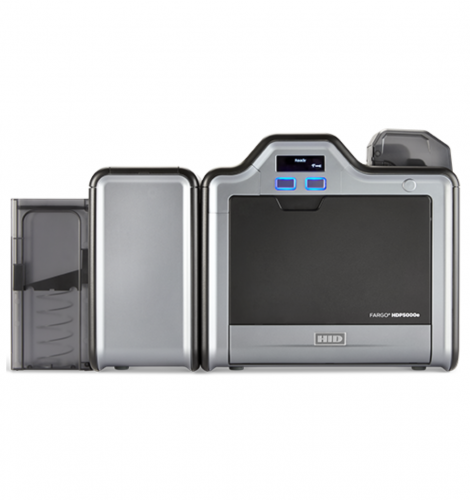

HDP5000e
